SlickLight

Slickline With Sensing Functions

Application

Retrievable downhole cable

Distributed downhole monitoring (DTS, DAS)

Signal transmission from downhole tools

Well logging

SlickLight-H

Cable side view
Optical fiber
Stainless steel tube
Copper conductor
Insulation
Outer protection tube
Cable cut view

SlickLight-S

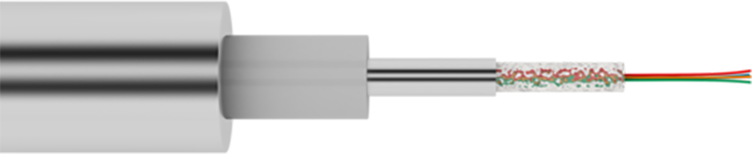

Cable side view
Optical fiber
Stainless steel tube
Insulation
Outer protection tube

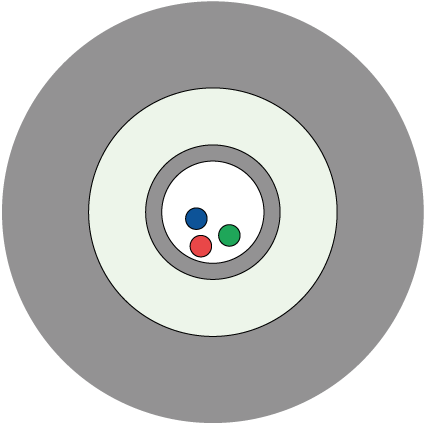

Cable cut view

SlickLight-S

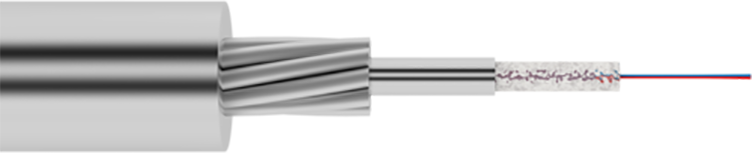

Cable side view
Optical fiber
Stainless steel tube
Galvanized high carbon steel wires
Outer protection tube
Cable cut view

SlickLight-C

Cable side view
Copper conductor
Insulation
Galvanized high carbon steel wires
Outer protection tube
Cable cut view

SlickLight-C

Cable side view
Copper conductor
Insulation
Stainless steel tube
Galvanized high carbon steel wires
Outer protection tube
Cable cut view
Features
  • Compact size & low weight
  • Corrosion-resistant
  • High temperature proof
  • Hydrogen-resistant fiber
Design options
  • Single or double layer steel tube
  • Gel-filled or gel-free FIMT
  • Armor of steel wires
  • Copper conductor
Parameters
Temperature rating +90 °C
+150 °C
+180 °C
+200 °C
+260 °C
+300 °C
+194 °F
+302 °F
+356 °F
+392 °F
+500 °F
+572 °F
Cable diameter 3.2–6.35 mm 0.125–0.25 in
Copper conductor section 0.75–3 mm² 18–13 AWG
Fiber count up to 12
Minimum bending radius (no load) x 20D
Materials

Optical fibers: SM or MM, coating depends on temperature rating

Tube: stainless steel 316L, Incoloy, Inconel

Armor wire: GIPS (galvanized improved plowed steel) or GEIPS (galvanized extra improved plowed steel), stainless steel or specialty Ni-based alloys for higher corrosion resistance
